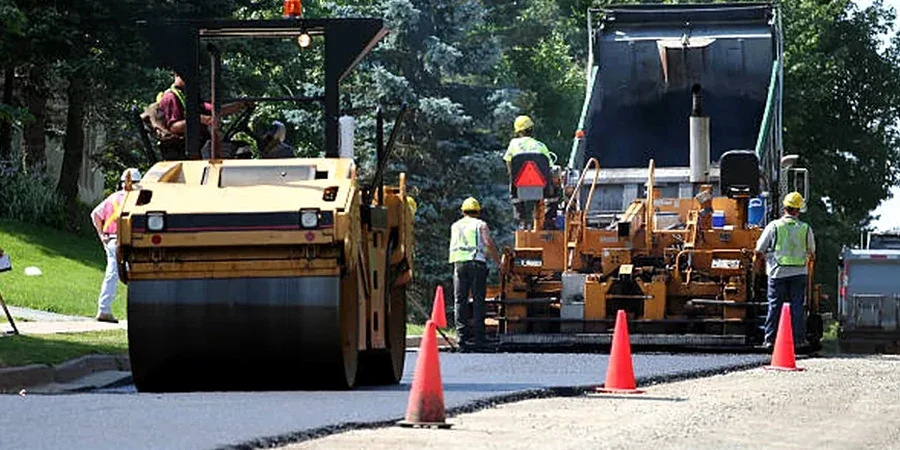

Designing a flexible pavement in Kingston means navigating two very different soil profiles within the same city limits. East of the Cataraqui River, contractors often encounter shallow limestone bedrock draped with thin silty till, while the west end near the 401 corridor sits on thicker glaciomarine clay deposits that can exceed 30 meters. This contrast changes everything: modulus values, drainage requirements, and the subbase thickness needed to prevent reflective cracking. A pavement section that performs flawlessly in Portsmouth District may rut prematurely near the Little Cataraqui Creek if the design ignores local geology. Our approach to flexible pavement design anchors every structural layer to site-specific conditions, using falling weight deflectometer data and laboratory resilient modulus testing rather than relying on generic catalog values. We integrate findings from a grain-size analysis of the granular base and combine them with the CBR road testing protocol to validate the structural number before a single tonne of asphalt is placed.
In Kingston, the difference between a 12-year and a 25-year pavement life is often buried in the first 300 mm of subgrade preparation.
Our approach and scope
Site-specific factors
A common mistake in the Kingston area is specifying a pavement structure based solely on the MTO regional typical cross-section without verifying the actual subgrade strength on site. This shortcut fails most often where the limestone bedrock is irregular and the overburden varies from zero to three meters across a single lot. Thin asphalt over rigid bedrock ledges creates stress concentrations that produce longitudinal cracking within the first two winters. Another recurring problem is under-designing the drainage layer: the Grenville marble-derived till holds water differently than the sandy outwash near the lake, and without an adequate daylighted granular base, trapped moisture accelerates stripping at the asphalt-aggregate interface. We insist on subgrade proof-rolling with a loaded truck and visual inspection for pumping soils before accepting the final design elevation, because a pavement is only as good as the platform it rests on.
Regulatory framework
OPSS 1010 (Ontario Provincial Standard for Granular Base and Subbase), OPSS 1150 (Asphalt Concrete), ASTM D4694 (Deflections with Falling Weight Deflectometer), ASTM D1883 (CBR of Laboratory-Compacted Soils), Asphalt Institute MS-1 (Thickness Design Manual), CSA A23.1 (Concrete Materials—for rigid tie-in sections)
Related services
Pavement Structural Design
Layer thickness and material specification using layered elastic analysis (KENLAYER or equivalent), traffic load spectra from AADT projections, and seasonal modulus adjustments for spring thaw conditions per the AASHTO 1993 method adapted to Ontario climatic zones.
Subgrade Evaluation and Stabilization
In-situ CBR testing, dynamic cone penetrometer profiles, and laboratory resilient modulus determination. When native soils fall below CBR 4%, we design lime or cement stabilization recipes and verify strength gain at 7 and 28 days.
Construction Phase Testing and FWD Verification
Nuclear density testing of each compacted lift, asphalt extraction and gradation, and falling weight deflectometer surveys on the finished pavement to back-calculate layer moduli and confirm the as-built structural number meets the design target.
Typical parameters
Common questions
What thickness of asphalt does a residential road in Kingston typically require?
For a low-volume residential street with good subgrade (CBR above 6%), a total asphalt thickness of 100 to 130 mm placed in two lifts over 250 mm of granular base is common. The exact structural number depends on the subgrade modulus and projected traffic, but this section has served well across subdivisions from Bayridge to Greenwood Park.
How much does a flexible pavement design cost for a commercial site in Kingston?
A complete design package—including subgrade investigation, pavement structure calculation, material specifications, and construction QA/QC recommendations—ranges from CA$2,530 to CA$8,060 depending on the site area, number of borings, and whether FWD verification is included. Larger industrial lots with multiple loading zones fall toward the upper end.
When should lime stabilization be considered instead of a thicker granular base?
Lime stabilization becomes cost-effective when the native subgrade CBR is below 4% and the required granular thickness would exceed 450 mm. In Kingston's clay-rich tills east of the Cataraqui River, adding 3–5% quicklime by weight modifies the soil's plasticity index and provides a working platform that reduces the structural number requirement for the overlying asphalt.
Does the design account for frost heave in Kingston's climate?
Yes. We design the total pavement and non-frost-susceptible subbase thickness to meet or exceed 60% of the 1.5-meter frost depth prescribed for the region. This typically means a minimum combined thickness of 900 mm of granular and asphalt over any frost-susceptible subgrade, with free-draining material extending to the frost penetration depth or to bedrock, whichever is shallower.
