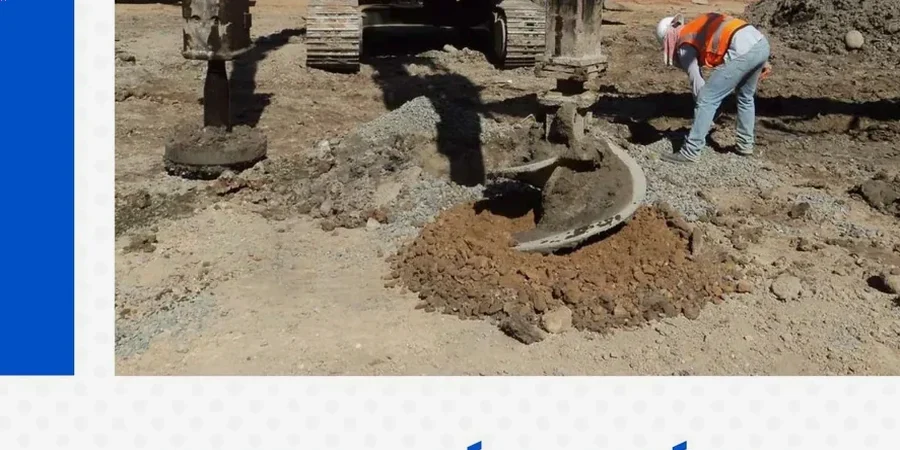

Kingston's 2020 building permit values topped $650 million. Much of that construction sits on the city's distinctive Leda clay deposits. This post-glacial marine sediment, deposited over 10,000 years ago when the Champlain Sea covered the region, presents a real challenge: high sensitivity and sudden strength loss when disturbed. Standard shallow footings often fail here. The solution is a designed ground improvement strategy using stone columns. A proper stone column design transforms weak, compressible clay into a composite mass capable of distributing structural loads safely. It is a soil reinforcement technique, not a simple compaction method. The design must account for the limestone bedrock that underlies much of Kingston at variable depths. That bedrock proximity changes everything about how we calculate column spacing and modulus. Complementing the ground model with CPT testing provides the continuous stratigraphic profile needed to define those critical interfaces before any column is installed.
In Kingston's sensitive Leda clay, a stone column is not just a drain; it is a structural element that must be designed with the same rigor as a deep foundation.
Our approach and scope
Site-specific factors
The most common error is treating stone columns as wick drains and ignoring the column stiffness in the design. In Kingston's Leda clay, that mistake triggers two failures. First, the columns bulge excessively under load because the confining stress from the clay is overestimated. Second, excessive pore pressure during installation remolds the sensitive clay, destroying its structure and creating a zone of near-zero strength around each column. The result is a site that tests worse after improvement than before. Another error is using a uniform grid where bedrock is shallow. Columns installed to refusal on an inclined rock surface can slide under seismic load. The NBCC 2020 requires a site-specific seismic hazard assessment for Kingston. The city sits in a moderate seismic zone, with a 2% in 50-year spectral acceleration near 0.4g. A stone column design must include a post-improvement verification program, typically using CPT or PMT, to confirm the composite modulus meets the specification before structural loads are applied.
Regulatory framework
NBCC 2020 – National Building Code of Canada, Part 4, CSA A23.3 – Design of Concrete Structures (for column caps/load transfer platforms), ASTM D5878 – Standard Guides for Using Rock-Mass Classification Systems for Engineering Purposes, CFEM – Canadian Foundation Engineering Manual, 4th Edition, OPSS 206 – Ontario Provincial Standard Specification for Ground Improvement
Related services
Geotechnical Investigation for Stone Column Design
CPT, SPT, and field vane testing to characterize Leda clay sensitivity and bedrock depth. Laboratory triaxial and consolidation testing on undisturbed Shelby tube samples.
Analytical and Numerical Design
Unit cell analysis using Priebe's method and 2D axisymmetric finite element modeling (Plaxis or RS2). Settlement and bearing capacity calculations for the composite ground.
Construction QA/QC and Post-Treatment Verification
Full-time monitoring during vibro-replacement. Post-installation CPT and PMT testing at grid centers and edges to validate the improvement factor and column modulus.
Typical parameters
Common questions
What is the typical cost range for a stone column design in Kingston?
The design package, including site investigation, analysis, and a stamped report, typically ranges from CA$2,250 to CA$7,080. The final cost depends on the number of boreholes or CPT soundings and the complexity of the finite element modeling required.
How does the Leda clay sensitivity affect the stone column installation method?
High sensitivity means the clay loses most of its strength when sheared. We specify a bottom-feed vibro-replacement system. The vibrator penetrates to the design depth with minimal water or air pressure, then stone is discharged from the tip as the vibrator is withdrawn in controlled lifts. This reduces remolding compared to top-feed methods.
What verification testing is required after stone column installation?
A post-treatment CPT program is the standard in Kingston. We perform soundings at inter-column locations and directly over columns. The results are compared to pre-treatment CPTs to calculate the actual improvement factor. For critical structures, we add pressuremeter tests (PMT) to directly measure the composite modulus.
How does the shallow bedrock in parts of Kingston influence the stone column design?
Where bedrock is less than 5 meters deep, we often design a load transfer platform (LTP) of compacted granular fill over shorter, closely spaced columns. The columns act more as rigid inclusions. We also check the stability of the LTP against lateral spreading on the bedrock surface under seismic loading per NBCC 2020.
